CKE1350G-2

CKE-G Series, BME-G Series

Product specifications CKE1350G-2
Max. Lifting Capacity:

150 t × 4.4 m

Max. Length:

76.2 m

Max. combination lenght:

61.0 m + 30.5 m


Product specifications

Crane Boom

Max. Lifting Capacity:
150 t × 4.4 m
Max. Length:
76.2 m

Fixed Jib

Max. Lifting Capacity:
26.8 t × 16.0 m
Max. Combination:
61.0 m + 30.5 m

Main & Aux. Winch

Max. Line Speed:
120 m/min (1st layer)
Rated Line Pull (Single Line):
132 kN {13.5 tf}
Wire Rope Diameter:
26 mm × 275 m
Wire Rope Length:
275 m (Main) 255 m (Aux.)
Brake Type:
Wet-type multiple disc brake (Optional)

Power Plant

Model:
HINO P11C-VN
Engine Output:
271 kW / 1,850 min-1 {rpm}
Fuel Tank Capacity:
400 liters

Working Speed

Swing Speed:
2.1 min-1 {rpm}
Travel Speed:
1.3 / 0.9 km/h

Hydraulic System

Main Pumps:
4 variable displacement
Max. Pressure:
31.9 MPa {325 kgf/cm2}
Hydraulic Tank Capacity:
535 liters

Weight

Operating Weight:
137 t
Ground Pressure:
107 kPa
Counterweight:
55,000 kg
Transport Weight:
31,980 kg

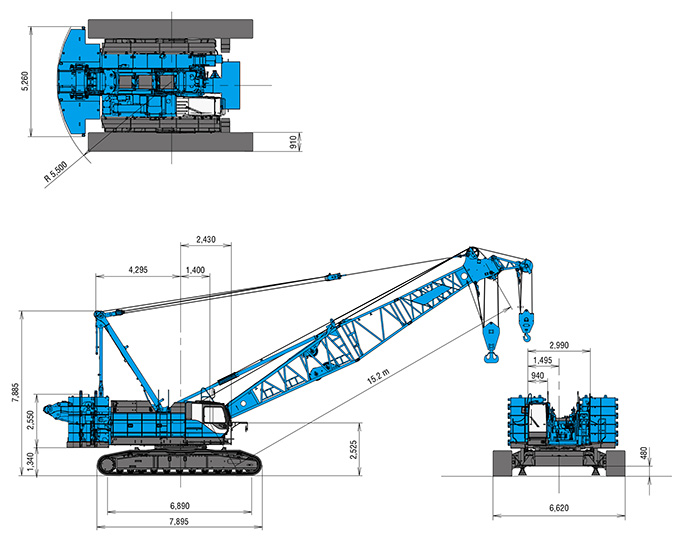

General Dimensions

General Dimensions
