Product specifications CKE2500G-2

Max. Lifting Capacity:

250 t × 4.6 m

Max. Length:

91.4 m

Max. combination lenght:

76.2 m + 30.5 m

Contact
Download PDF
Download Specs

Product specifications

Crane Boom

Max. Lifting Capacity:

250 t × 4.6 m

Max. Length:

91.4 m

Fixed Jib

Max. Lifting Capacity:

27.0 t × 10.4 m

Max. Combination:

76.2 m + 30.5 m

Main & Aux. Winch

Max. Line Speed:

110 m/min (1st layer)

Rated Line Pull (Single Line):

132 kN {13.5 tf}

Wire Rope Diameter:

26 mm × 460 m

Wire Rope Length:

480 m (Main) 390 m (Aux.)

Brake Type:

Wet-type multiple disc brake (Optional)

Power Plant

Model:

HINO P11C-VN

Engine Output:

271 kW / 1850 min-1

Fuel Tank Capacity:

400 liters

Working Speed

Swing Speed:

2.2 min-1 {rpm}

Travel Speed:

1.0 / 0.5 km/h

Hydraulic System

Main Pumps:

4 variable displacement

Max. Pressure:

32 MPa {326 kgf/cm2}

Hydraulic Tank Capacity:

650 liters

Weight

Operating Weight:

220 t

Ground Pressure:

112 kPa

Counterweight:

90,400 kg

Transport Weight:

43,980 kg*2 or 44,570 kg*3

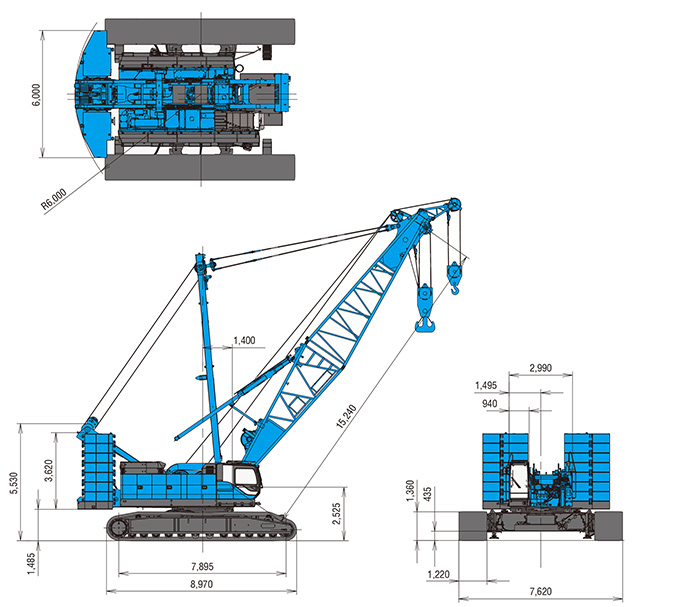

General Dimensions
