Small in size. Big personality. Kobelco launches next generation SK50SRX-7 and SK58SRX-7 mini excavators
As a construction manufacturer specializing in excavator development, Kobelco understands the
importance of mini excavators to its overall product line-up. Mini models play a key role in
landscaping, utilities and on small construction projects, but they can also provide vital support on
larger jobsites too. The next generation Kobelco SK50SRX-7 and SK58SRX-7 mini excavators
deliver increased performance and productivity and follow Kobelco’s Performance X Design
concept for enhanced design and operator comfort. This reinforces the Japanese manufacturer’s
continued commitment to developing its smaller machinery alongside its heavier equipment.
Performance is key to mini excavator operators, particularly when project deadlines are tight. The
all-new SK50/58SRX-7 machines benefit from improved hydraulic performance when compared to
the previous models (SK45SRX-6E and SK55SRX-6E). The new hydraulic system shortens the
digging cycle time by up to 11% (SK58SRX-7), and this high performance can be maintained without
reducing speed, even with a heavy load or when travelling up a slope. In addition, the replacement
of the travel motor and swivel joint has increased the travel and hill climbing speeds by up to 12%
and 10% respectively (SK58SRX-7).
Other benefits of the new hydraulic system include smoother operation and improved levelling
performance. The Integrated Flow Pump System enables operators to harness extra output from the
third pump, which otherwise powers the swing and dozer circuit. This additional output is directed to
the arm and boom for added power when digging, resulting in a fast and smooth raising operation,
even with heavy loads.
Like all Kobelco’s Short Radius (SR) machines, the SK50/58SRX-7 feature a compact tail swing for
operation in restricted spaces, such as on urban or residential jobsites, for a smaller working footprint.
However, a larger boom and arm are provided as standard equipment for a wide working range.
The machines’ unique blade design ensures the earth always falls forward and not behind the blade
when dozing, meaning that only ‘one pass’ is needed and saving time on the jobsite. Inside the cabin,
the dozer can be controlled by the ergonomically designed lever, which is easier to grip, and the first
and second speed switches have been repositioned in order to improve manoeuvrability. An angled
dozer and floating dozer are also available as optional equipment.
Durability and reliability of the SK50/58SRX-7 is assured through reinforced construction. The boom,
arm and swing bracket all have large cross-section segments for added attachment strength, and
the bolt-tightened pins firmly lock the boom to prevent the boom top from opening laterally. The
bucket features a cast-iron idler link, and the box construction dozer supports provide greater
Despite its compact size, the SK50/58SRX-7 also follows the same stunning Performance X Design
concept for improved design and operator comfort, as seen on the recently released Kobelco
SK210(N)LC-11 and SK500/530LC-11 machines. A proven Grammer suspension and reclining seat
provides excellent shock absorption and comfort on all terrains. Improved ergonomics enable the
operator to move the control levers horizontally without twisting their wrist, and the enlarged wrist
rests keep the operator’s forearms in position, reducing fatigue and allowing stable operation. The
air conditioner, smartphone holder (Bluetooth handsfree-enabled), USB/AUX port, DAB+ Radio, cup
holder and coat hook provide some home comforts during long hours of operation.
A colour display comes as standard and provides easy access to operating history, maintenance
cycle and fuel and water temperature gauges. It can also be used to adjust the hydraulic oil flow to
the attachments. When in Energy Conservation mode, the SK50/58SRX-7 adapts S-mode to enable
26% less fuel consumption when compared with H-mode (SK58SRX), and an auto-deceleration
switch is installed as standard. The shape of the access shutdown lever has been adapted and the
door also opens widely for improved access. The window on the right side of the cab can be opened
and closed both forwards and backwards to facilitate ventilation and make it easier to hear outside
In terms of operator safety, the high-strength cab/canopy meets ROPS, TOPS and OPG Level 1 (Top
guard) standard, while an LED work light, which comes as standard, is mounted under the boom to
protect from damage. The wiper mount has been moved to the upper right of the cab support and
the skylight opening has also been enlarged, improving operator visibility of the jobsite.
When it comes to cabin noise, Kobelco’s innovative Integrated Noise & Dust reduction cooling
system (iNDr), usually seen in Kobelco’s heavier machines, is a superior method of noise
suppression that promotes low noise as well as exceptional engine cooling, enhanced reliability,
minimal machine downtime and a more comfortable working environment. The further improved
iNDr+E system on the SK50/58SRX-7 functions in the same way as the iNDr system on the SR
machines, but features air intake at the front of the machine and directs the muffler exhaust
underneath. The exhaust is further slowed down and cooled through the offset duct and then
discharged into the atmosphere.

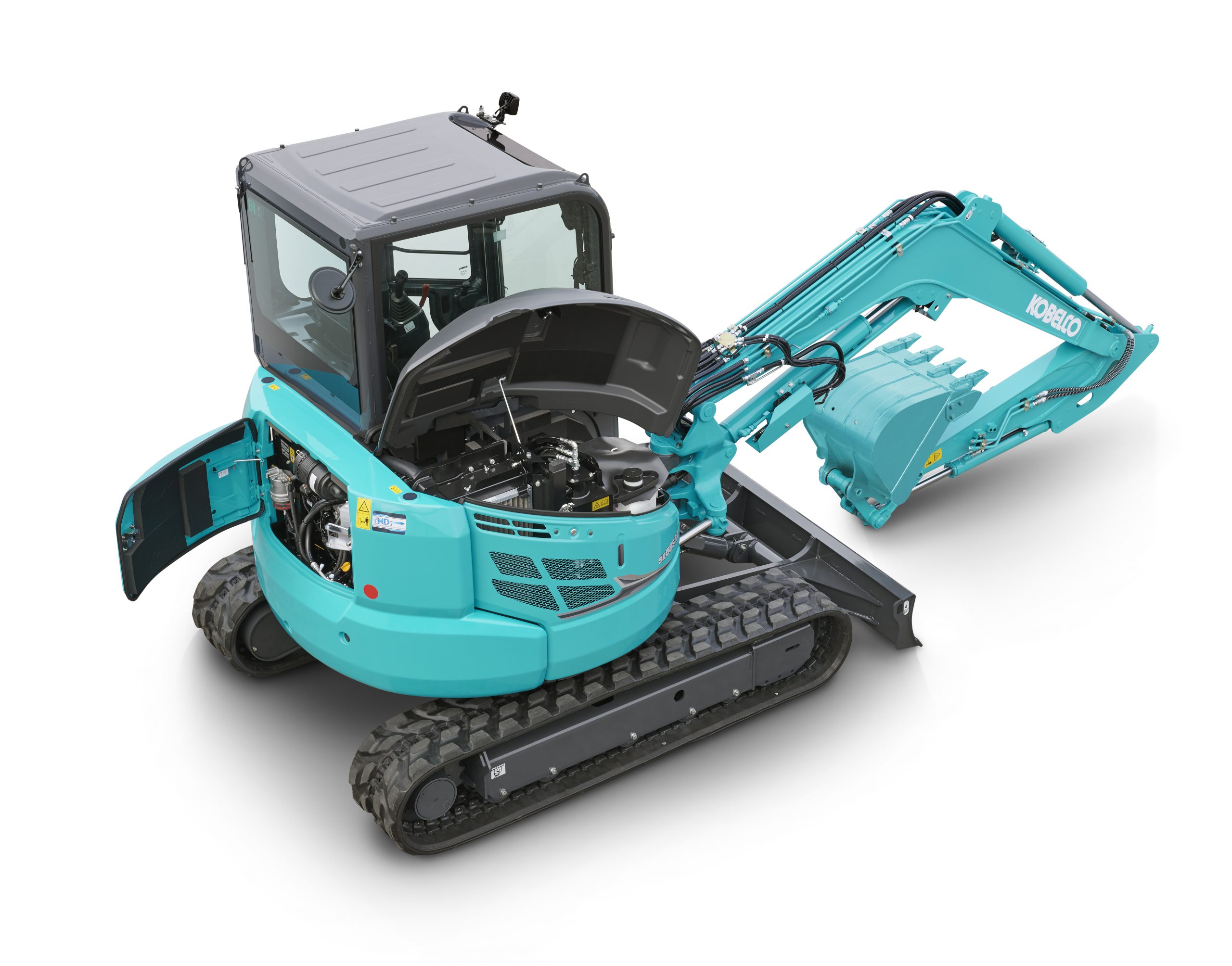

The SK50/58SRX-7 also offers easy access to the engine compartment, promoting easy daily
maintenance that reduces time for inspection and cleaning. The iNDr filter has a high-density mesh
of 30 lines per inch to collect dust.
Commenting on the launch of the all-new Kobelco SK50/58SRX-7, Product Marketing Technical Manager,
Tadayoshi Aoki, said: “Increasing demand for smaller machines means that mini excavators have
become even more important to Kobelco’s overall product line-up. Many of the features included in
our new SK50/58SRX-7 mini excavators, such as the iNDr system, have been tried and tested in
our heavier machines first, while customer feedback also played a vital role in the development of
these new mini machines. The SK50/58SRX-7 truly represent a new generation in Kobelco
Performance x Design.”
For more information about this machine and to see a full and easy-to-view directory of the European,
Russia & CIS and Maghreb Kobelco dealer network, please visit the official Kobelco Construction
Machinery Europe B.V. website at www.kobelco-europe.com
