7055-3F

overview products

Images and videos

BMS Series, 7000S, 7055

Product specifications 7055-3F

Max. Lifting Capacity:

55 t × 3.7 m

Max. Length:

51.8 m

Max. combination lenght:

42.7 m + 12.2 m
39.6 m + 18.3 m

Contact
Download Specs

Product specifications

Crane Boom

Max. Lifting Capacity:

55 t × 3.7 m

Max. Length:

51.8 m

Fixed Jib

Max. Lifting Capacity:

7 t × 16.0 m

Max. Combination:

42.7 m + 12.2 m, 39.6 m + 18.3 m

Main & Aux. Winch

Max. Line Speed:

120 m/min (1st layer)

Rated Line Pull (Single Line):

68.6 kN {7.0 tf}

Wire Rope Diameter:

22 mm

Wire Rope Length:

Crane: 175 m (Main) 125 m (Aux.), Tower: 220 m (Main) 120 m (Aux.)

Brake Type:

Spring set hydraulically released

Power Plant

Model:

HINO J08E-TM

Engine Output:

159 kW / 2,000 min-1 {rpm}

Fuel Tank Capacity:

400 liters

Working Speed

Swing Speed:

4.0 min-1 {rpm}

Travel Speed:

2.2 / 1.5 km/h

Hydraulic System

Main Pumps:

3 variable displacement

Max. Pressure:

31.9 MPa {325 kgf/cm2}

Hydraulic Tank Capacity:

440 liters

Weight

Operating Weight:

Approx. 56.7 t

Ground Pressure:

72.3 kPa {0.74 kgf/cm2}

Counterweight:

15.2 t

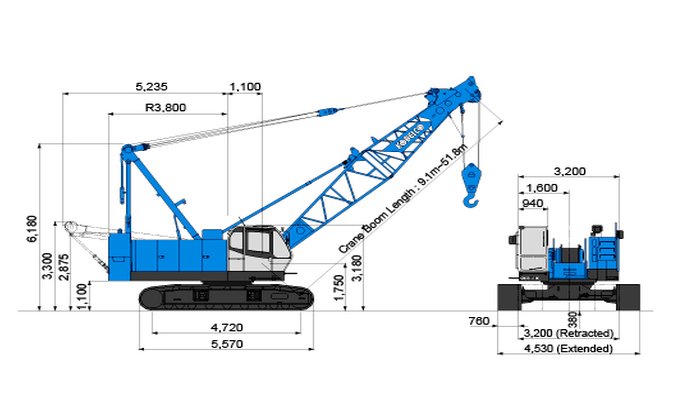

General Dimensions
