CKE3000G-2

Previously Manufactured Models

Product specifications CKE3000G-2
Max. Lifting Capacity:

300 t × 5.5 m

Max. Length:

90 m

Max. combination lenght:

78m + 30.5m

Contact
Download PDF
Download Specs

Product specifications

Crane Boom

Max. Lifting Capacity:
300 t × 5.5 m
Max. Length:
90 m

Fixed Jib

Max. Lifting Capacity:
26.5t x 12.9m
Max. Combination:
78m + 30.5m

Main & Aux. Winch

Max. Line Speed:
115 ~ 3 m/min
Rated Line Pull (Single Line):
147 kN
Wire Rope Diameter:
28 mm
Wire Rope Length:
600 m (H1) 390 m (H2) *600m option (H2)
Brake Type:
Wet-type multiple disc brake (Optional)

Power Plant

Model:
SCANIA DC13 084A
Engine Output:
331 kW / 2,100 min-1{rpm}
Fuel Tank Capacity:
600 liters

Working Speed

Swing Speed:
1.7 min-1 {rpm}
Travel Speed:
1.0 / 0.6 km/h

Hydraulic System

Main Pumps:
8 variable displacement
Max. Pressure:
31.9 MPa {326 kgf/cm2}
Hydraulic Tank Capacity:
860 liters

Weight

Operating Weight:
Approx. 325 t
Ground Pressure:
149 kPa {1.52 kgf/cm2}
Counterweight:
140 t (standard) 160 t (option)

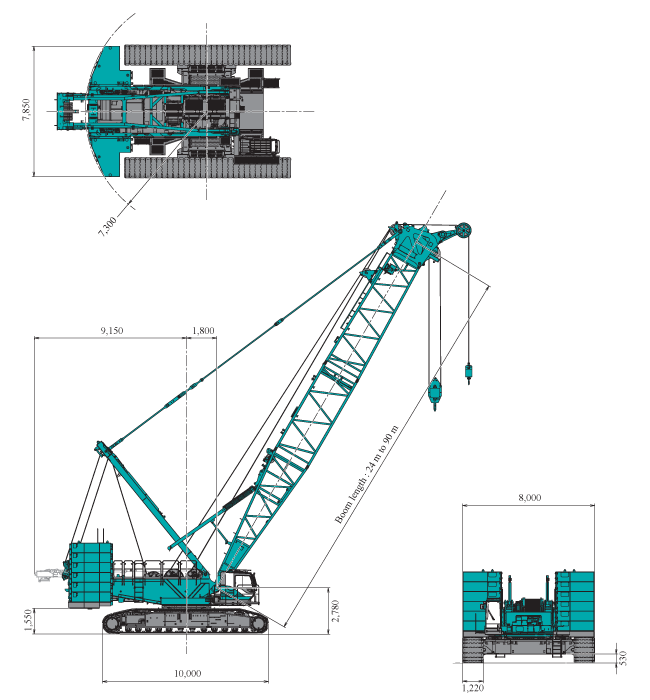

General Dimensions

General Dimensions
