SL4500S

overview products

Images and videos

SL S Series

Product specifications SL4500S

Max. Lifting Capacity:

400 t x 5.5 m (STD Luffing boom)

Max. Length:

96.0 m (STD Long boom), 78.0 m + 66.0 m (SHL Luffing jib combination)

Contact
Download PDF
Download Specs

Product specifications

Crane Boom

Max. Lifting Capacity:

400 t x 5.5 m (STD Luffing boom)

Max. Length:

96.0 m (STD Long boom), 78.0 m + 66.0 m (SHL Luffing jib combination)

Fixed Jib

Main & Aux. Winch

Max. Line Speed:

110 m/min (1st layer)

Rated Line Pull (Single Line):

137 kN {13.5 tf}

Wire Rope Diameter:

28 mm

Power Plant

Model:

HINO E13C-WY

Engine Output:

320 kW / 2,000 min-1 {rpm}

Fuel Tank Capacity:

600 liters

Working Speed

Swing Speed:

1.2 min-1 {rpm}

Travel Speed:

1.0 / 0.6 km/h

Hydraulic System

Main Pumps:

6 variable displacement

Max. Pressure:

32.0 mpa {326 kgf/cm2}

Hydraulic Tank Capacity:

710 liters

Weight

Operating Weight:

Approx. 413 t

Ground Pressure:

178 kPa {1.8 kgf/cm2}

Counterweight:

Upper: 160 metric tons, Lower: 51 metric tons

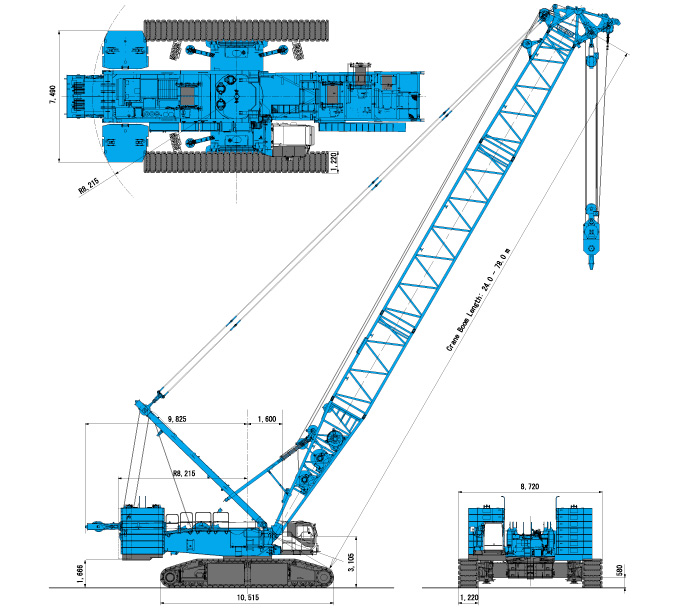

General Dimensions
