Product specifications 7120SFS

Max. Lifting Capacity:

120 t × 5.0 m

Max. Length:

61.0 m

Max. combination lenght:

61.0 m + 30.5 m

Contact
Download PDF
Download Specs

Product specifications

Crane Boom

Max. Lifting Capacity:

120 t × 5.0 m

Max. Length:

61.0 m

Fixed Jib

Max. Lifting Capacity:

12.0 t × 28.0 m

Max. Combination:

61.0 m + 30.5 m

Main & Aux. Winch

Max. Line Speed:

120 m/min

Rated Line Pull (Single Line):

118 kN {12.0 tf}

Wire Rope Diameter:

26 mm × 275 m

Wire Rope Length:

275m (Main), 255 m (Aux.)

Brake Type:

Wet-type multiple disc brake

Power Plant

Model:

HINO P11C-VH

Engine Output:

271 kW / 1,850 min-1

Fuel Tank Capacity:

400 liters

Working Speed

Swing Speed:

2.1 min-1 {rpm}

Travel Speed:

1.3 / 0.9 km/h

Hydraulic System

Main Pumps:

4 variable displacement

Max. Pressure:

31.9 MPa {325 kgf/cm2}

Hydraulic Tank Capacity:

535 liters

Weight

Operating Weight:

120 t

Ground Pressure:

93.6 kPa

Counterweight:

53,110 kg

Transport Weight:

34,800 kg

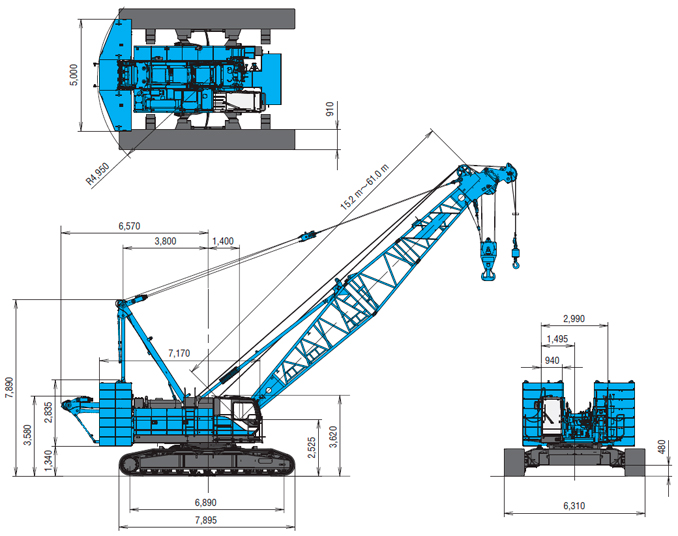

General Dimensions
