CKS900

CKS Series

Product specifications CKS900
Max. Lifting Capacity:

90 t × 3.9 m

Max. Length:

61.0 m

Max. combination lenght:

51.8 m + 18.3 m


Product specifications

Crane Boom

Max. Lifting Capacity:
90 t × 3.9 m
Max. Length:
61.0 m

Fixed Jib

Max. Lifting Capacity:
10.9 t × 18.0 m
Max. Combination:
51.8 m + 18.3 m

Main & Aux. Winch

Max. Line Speed:
120 m/min (1st layer)
Rated Line Pull (Single Line):
112 kN {11.4 tf}
Wire Rope Diameter:
26 mm
Wire Rope Length:
240 m (Main), 165 m (Aux)
Brake Type:
Wet-type multiple disc brake (Optional)

Power Plant

Model:
HINO J08E-VM
Engine Output:
213 kW / 2,100 min-1
Fuel Tank Capacity:
400 liters

Working Speed

Swing Speed:
4.0 min-1 {rpm}
Travel Speed:
1.7 / 1.1 km/h

Hydraulic System

Main Pumps:
3 variable displacement
Max. Pressure:
31.9 MPa {325 kgf/cm2}
Hydraulic Tank Capacity:
440 liters

Weight

Operating Weight:
90.1 t
Ground Pressure:
101 kPa
Counterweight:
31,900 kg
Transport Weight:
41,360 kg

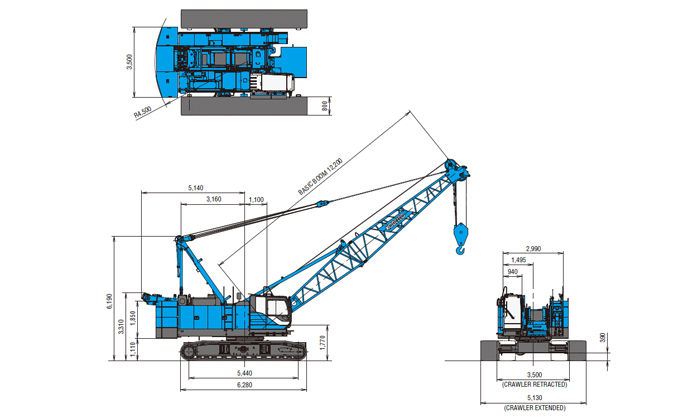

General Dimensions

General Dimensions
